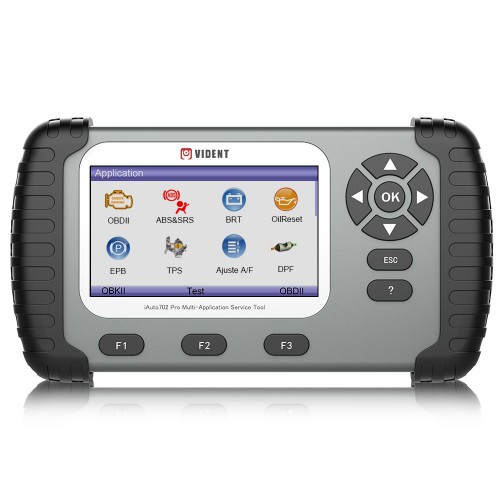

VIDENT iauto 702  pro is a cost-effective professional multi-application service tool that delivers at least 19 maintenances covering ABS and SRS diagnosis for workshops. Here share this Vident scan tool user manual including registration and software update.

vident-iauto702-pro

Main steps:

1.Install update client
2.Creat a Vident ID
3.Register iauto702 pro
4.Connect the TF card with computer
5.Download software

Let’s go one by one.

1.Install update client

Method 1: Visit VIDENT official website: www.videnttech.com to download the update client from http://www.videnttech.com/support/

VIDENT iauto702 pro install

Note: The file downloaded is a compressed zip file, please open the file and run the installer inside it.

Method 2: Install the update client from the CD that comes in the product package.

2.Create a VIDENT ID

Method 1: When update client installed successfully, start the iScanzilla software to register firstly

VIDENT iauto702 pro register

VIDENT iauto702 pro register

Enter the registration page, input the personal information required and submit

vident-iauto702-pro-registration-update-4

Method 2: Click “Sign up” on the right upper side of VIDENT official website to create a user account

vident-iauto702-pro-registration-update-5

3.Register iauto702 pro

Method 1: Log in iScanzilla with your account registered

Select “Register Product” and tick off the item to enter the serial number and password

Then click on “Submit”

vident iauto702 pro registration update 6

Connect iAuto702 pro service tool with computer via USB cable

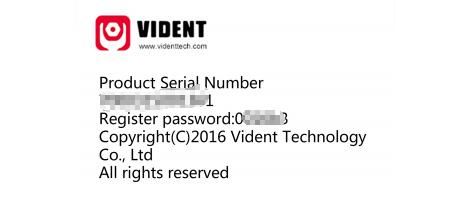

Select “Setup”-> “About” to check the serial number and register password

vident iauto702 pro registration update 7

A confirmation message will show confirming successful registration on the screen

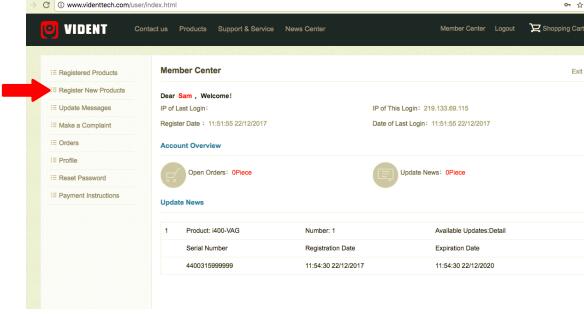

Method 2: Register the product in the member center when logged in on official website

vident iauto702 pro registration update 8

4.Connect the TF card with computer

Exit the iScanzilla software

Turn off VIDENT iAuto702 pro firstly

Remove the TF card from it and then connect with a windows computer via a TF card reader

5.Download software

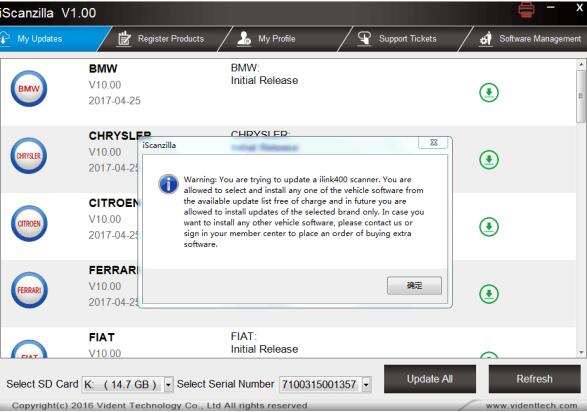

Method 1: When Windows has detected the TF card, run the iScanzilla software and login again.

After a few seconds, it will display a list of the available software updates.

vident iauto702 pro registration update 9

Select the corresponding car brand software you need to update

vident iauto702 pro registration update 10

Please kindly notice:

You only can select one software to update, as you can only have access to the update of this manufacture in the future once it’s been selected initially. In case you want to install any other vehicle software, you can contact your distributor or sign in your member center to purchase.

Method 2: Update Vident iAuto702 Pro via CD

Put the Vident CD into PC to read relevant files

vident iauto702 pro registration update 11

Open the CD file and run “iScanzilla Installer.exe”

vident iauto702 pro registration update 12

Select the language you need and install iScanzilla software

vident iauto702 pro registration update 13vident iauto702 pro registration update 14

Once finish installation, go to register ID

Fill out the personal information to register

vident iauto702 pro registration update 15

When registration completed, sign in with the user ID& password

vident iauto702 pro registration update 16

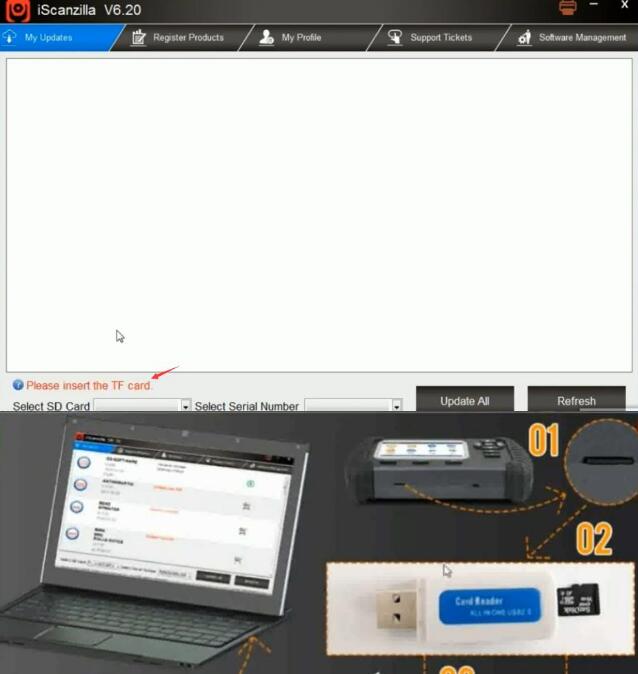

Follow the tip at the left corner to insert the TF card

vident iauto702 pro registration update 17

TF card will be identified automatically once insert it to PC via card reader

Registration completed

vident iauto702 pro registration update 18

Confirm whether the SN below is the same as that on the password paper or not, if it is, can update successfully

vident iauto702 pro registration update 19
