ELM327 is obd2 bluetooth scanner which can work well with iPhone and Android by Wifi. ELM327 iPhone can read out the vehicle data including Engine RPM, Calculated Load Value,Coolant Temperature,Fuel System Status,Vehicle Speed,Short Term Fuel Trim and other information. What’s more, it supports all OBD-II protocols.

ELL327

ELM327 Supported Protocols:

  • SAE-J1850 PWM (41.6 kbaud)
  • SAE-J1850 VPW (10.4 kbaud)
  • ISO 9141-2 (5 baud init, 10.4 kbaud)
  • ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
  • ISO 14230-4 KWP (fast init, 10.4 kbaud)
  • ISO 15765-4 CAN (11 bit ID, 500 kbaud)
  • ISO 15765-4 CAN (29 bit ID, 500 kbaud)
  • ISO 15765-4 CAN (11 bit ID, 250 kbaud)
  • ISO 15765-4 CAN (29 bit ID, 250 kbaud)

ELM327 Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL (“Check Engine” light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13. Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18.Fuel Pressure

ELM327 Software Download:

WIFI ELM 327 OBD2 Auto Scanner for IPhone Ipad IPod Software (193,951.0K)

OBD2 ELM327 Bluetooth CAN-BUS Scanner Tool Software (128,439.0K)

ELM 327 1.5V USB CAN-BUS Scanner Software (39,441.0K)

ELM327 Adapters:

WIFI ELM327 OBD2 Auto Adapter Scan Tool for iPhone

WI-FI ELM327 OBD2 AUTO CHECKER is able to detect and interpret these protocols automatically. Wifi elm327 also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on).

wifi elm327 wireless obd2 auto scanner adapter scan 1

ELM327 Bluetooth CAN-BUS scan tool

ELM327 Bluetooth CAN-BUS scan tool,It supports all OBD-II protocols.It is used to read diagnose trouble codes,clear trouble codes and detect fuel pressure and so on.

elm327 bluetooth obd2 can bus scanner 1 300x3001

MINI ELM327 bluetooth OBD2 V1.5

MINI ELM327 bluetooth is the newly developed wireless scan tool. It supports all OBD-II protocols.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).Clear trouble codes and turn off the MIL (“Check Engine” light)

Super Mini ELM327 Interface Bluetooth OBD2 Scan Tool

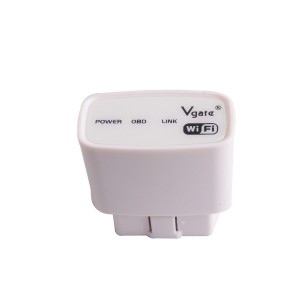

VGATE WIFI OBD Multiscan Elm327 For iPhone

VGATE WIFI OBD Multiscan Elm327 For iPhone iPad fully compatible with ELM 327 V1.4b,faster than four times or higher.

vgate wifi obd muliscan elm327 for android pc iphone ipad

ELM327 1.5V USB CAN-BUS Scanner Software

OBD-II Software for ELM327 USB is a free program that allows you to use your PC and a hardware interface to get the information from your car’s computer.The program is very user-friendly, and easy to learn.

elm 327 15v usb can bus scanner multiplexer

ELM327 code scanner comparison table:

product Name and Item NO PC-Based Iphone iPad iPod Android Bluetooth WIFI Mini
elm-327-aluminum-sc01 ELM327 CANBUS With aluminum shell(Item No. SC01) PC-Based
elm327-vgate-scan-advanced-obd2-scan-sc76 Elm327 vgate(Item No. SC76) Android Symbian
elm327-bluetooth-obd2-scanner-plastic-sc03 ELM327 Bluetooth with Plastic shell(Item No. SC03) PC-based Bluetooth
elm327-scanner-software-usb-plastic-with-ft232rl-chip-sc02 ELM327 Plastic with FT232RL Chip(Item No. SC02) PC-based
wifi-elm327-wireless-obd2-auto-scanner-adapter-scan-sc133 ELM327 WIFI for iPhone iPad iPod (Item No. SC133) iPhone iPad Ipod Bluetooth WIFI
wifiobd-device-SO71 WiFi OBD2 scanner for Apple iPad iPhone iPod Touch(Item No. SO71) iPhone iPad Ipod WIFI
new-mini-elm327-bluetooth-obd2-v15-sc104 MINI ELM327 Bluetooth(Item No. SC104) PC-base Bluetooth Mini
wifi327-wifi-obd2-eobd-scan-tool-sc133-c ELM327 WIFI for Android iPhone/iPad (Item No. SC133-C) iPhone iPad Ipod Android WIFI
elm327-obdii-wifi-diagnostic-wireless-scanner-sc133-b Wifi ELM327 Apple iPhone Touch(Item No.SC133-B) PC-based iPhone iPad Ipod Bluetooth WIFI
2013-new-code-reader-tool-super-mimi-elm327-sc157 mini ELM327 WiFi with Switch work with iPhone(Item No. SC157 ) iPhone iPad Ipod WIFI Mini
elm327-bluetooth-version-can-bus-eobd-scan-tool-120 ELM327 Bluetooth CAN BUS(Item No. SC03-B) PC-based Bluetooth
elm327-v-1-4-usb-plastic-scanner-new-sc02-b USB ELM327 plastic with FT232RL Chip (Item No. SC02-B) PC-based
super-mini-elm327-bluetooth-new-sc158 Super Mini ELM327 Bluetooth with Power Switch (Item No. SC158) Android Bluetooth Mini
vgate-wifi-obd-multiscan-elm327-sc76-b

VGATE WIFI OBD Multiscan Elm327 for Android PC iPhone iPad

(Item No. SC76-B)

PC-based iPhone iPad Ipod Android Mini
mini-elm327-bluetooth-obd2-sc104-b MINI ELM327 Bluetooth white(Item No. SC104-B) PC-based Bluetooth Mini
new-mini-elm327-bluetooth-obd2-black-sc104-c MINI?ELM327?Bluetooth (black)(Item No. SC104-C) PC-based Bluetooth Mini
mini-elm327-interface-viecar-obd2-bluetooth-scanner-sc264 MINI ELM327 Interface Viecar 2.0 OBD2 Bluetooth for Android and windows (Item No. SC264) PC-based Android Bluetooth Mini
elm327-plastic-obdii-eobd-canbus-scanner-with-2102-chip-sc02-d Elm327 plastic with 2102 chip(Item No. SC02-D) PC-based
wifi-elm327-obd2-car-diagnostic-tool-sc76-d WIFI ELM327 for Android and iOS iPhone/iPad(Item No.SC76-D) PC-based iPhone iPad Ipod Android WIFI Mini
super-mini-elm327-bluetooth-version-sc104-d Super MINI ELM327 Bluetooth Black(Item No.SC104-D) PC-based Bluetooth Mini
mini-elm327-bluetooth-interface-sc104-e Mini ELM327 Bluetooth(Item No.SC104-E) PC-based Android + Symbian Bluetooth Mini
super-mini-elm327-bluetooth-obd2-scanner-sc104-f Super Mini ELM327 Bluetooth OBD2 CANBUS scanner(Item No. SC104-F) PC-based Android +Symbian Bluetooth Mini
super-mini-elm327-bluetooth-obd2-white-sc104-g Super MINI ELM327 Bluetooth OBD2 White(Item No. SC104-G) PC-based Android Bluetooth Mini
